Scale Drawings

You'll find all of the isinglass scale drawings in here.

If you know the type and numbers you need, you can order those directly, or you can search for diagram numbers or text in the description.

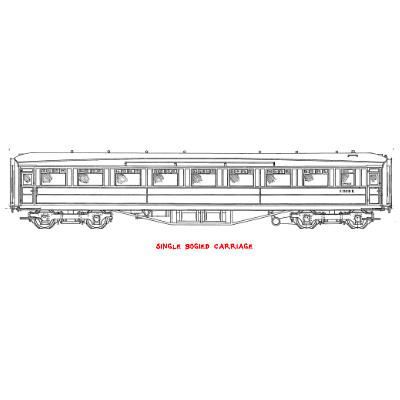

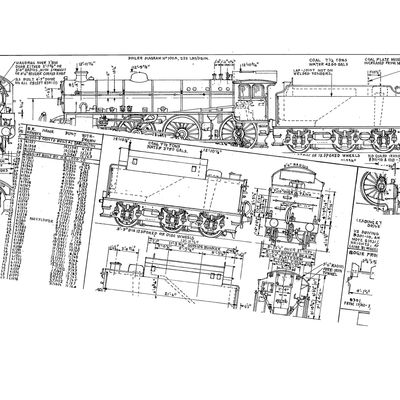

Single carriages, as they are smaller drawings (size A sheet) , cost less than articulated carriages and locomotives (size B sheet).

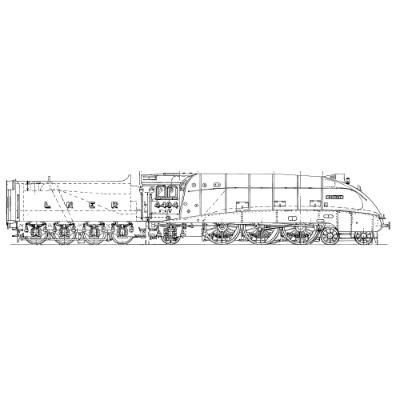

Some drawings are grouped together into sets, eg The coronation set or Gresley A4 set at a lower combined price. All the drawings in sets are available individually as well.

N Gauge/2mm drawings also available. As the drawings were all prepared by hand in 4mm scale, the writing becomes illegible when shrunk to smaller scales. The best work around I have is to order the drawings in 4mm, then in the comments or by email request an A4 copy to the scale you need.

3mm modellers, sorry but this process won't work for you as loco/articulated carriage drawings will still be too large to fit on A4 sheet.
