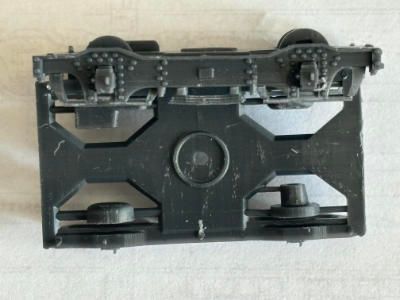

The 8ft heavy duty bogie was used on some of the GN area quad arts as well as other carriages Similar in appearance to the 8'6" heavy but with a shorter central spring.
Supplied with an NEM pocket and optional riser to adjust ride height, no assembly is required to the bogie frame. Fitting to the carriage is by an 8BA screw and nut (not included)
Simply remove additonal parts and printing support, clean the wheel voids, then pop in your choice of bearings into the axle boxes. Gently lever the frames out wards to insert your wheel set for a bogie that runs freely.
I don't include wheels or bearings as everyone has their own favourite choice of supplier. Designed for 26mm axles and works well with wheel sizes up to 14mm diameter in OO, EM and P4.
Resin accepts normal paints with no special preparation. Parts can be glued using PVA , superglue or most other adhesives.
